Middle Voltage Series


MODEL

CURRENT

VOLTAGE

BEC

SIZE

WEIGHT (WITH WIRES)

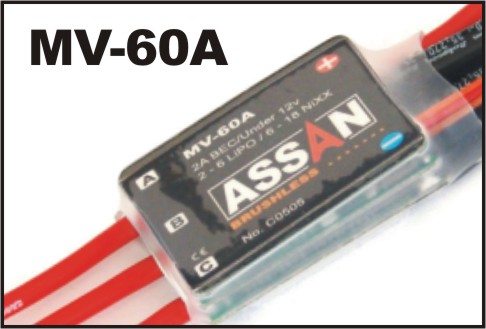

MV - 60A

60amp

5.6v-25.2v

2amp

43*27*8(mm) 1.69*1.06*0.31(in)

45g 1.59oz

MV - 80A

80amp

5.6v-25.2v

2amp

43*27*8(mm) 1.69*1.06*0.31(in)

50g 1.69oz

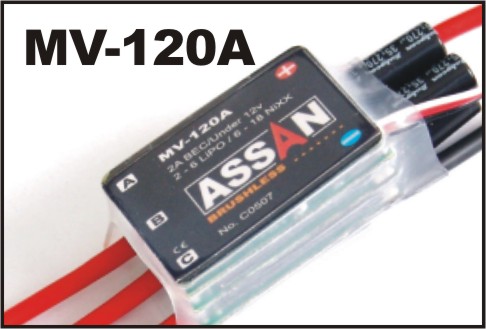

MV -120A

120amp

5.6v-25.2v

2amp

43*27*16(mm) 1.69*1.06*0.63(in)

60g 2.12oz

 FEATURES

  High rate(10KHz) Switching (PWM) Pulse Width Modulation

  Dynamic Braking to ensure prompt prop folding

  BEC (2.0amps) provides power to receiver and servos.

  Overheat Protected

  Low Voltage Cut-off.

  Brake Mode

  Timing Advance

  Motor Rotation

  Safe Arming System protects user from startup accidents

  Built in Radio Fail Safe

  Micro Processor Controlled

  USB-LINKER for computer application

NOTE

        The BEC is available ONLY below 3 cells Li-poly input. When at 4 cells Li-poly battery, please take  isolate battery or Ultimate BEC to power the Rx and servos.



                                   Download ESC Instructions                  Download ESC CONFIG
