Ultimate BEC:

    Ultimate BEC is design for supply the powerful current to Rx and servos. Include linear regulator and switch regulator, suited to different conditions.

__________________________________________________________________

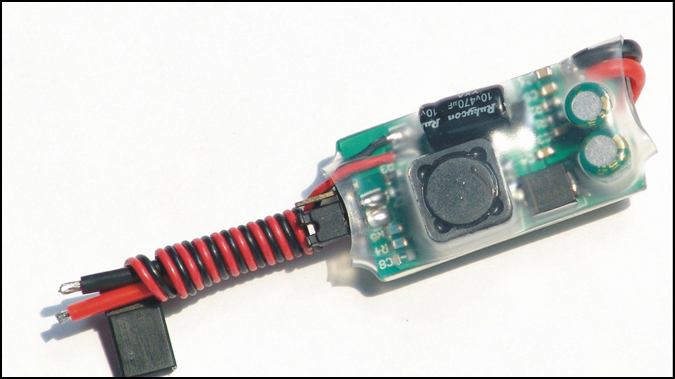

Ultimate BEC 1

    This Ultimate BEC is an external circuit that taps power form your battery pack and regulates the voltage to the necessary 5/6 volts to power your receiver and servos.

Features:
Input: 8~23v
Output: 5v/6v switch
Current: Max 3amp continues
Mode: Switch-mode

__________________________________________________________________

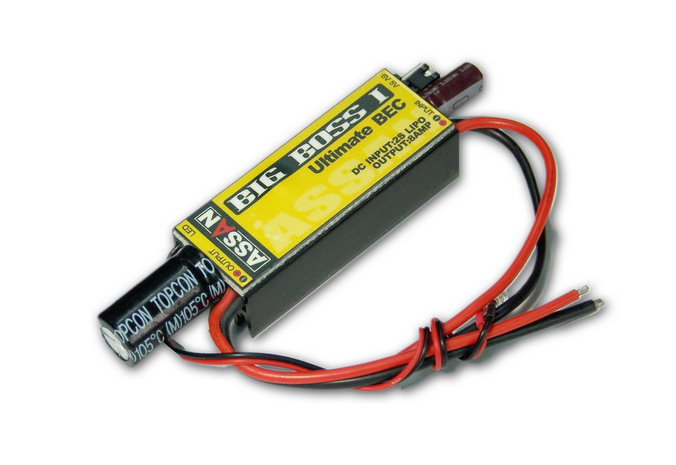

BIG BOSS:

    BIG BOSS is a powerful linear BEC, which means its without any interface to any instruments, such as Gyro, Receiver, and Servos.

This is most important to much application in R/C.

Features:
Input:2cells Li-poly pack
Output: 5v/6v switch
Current: Max 8amp continues
LED: low input voltage alarm at 6.6v
Mode: Linear-mode

__________________________________________________________________

   Ultimate BEC WITH LI-POLY SAFE£º

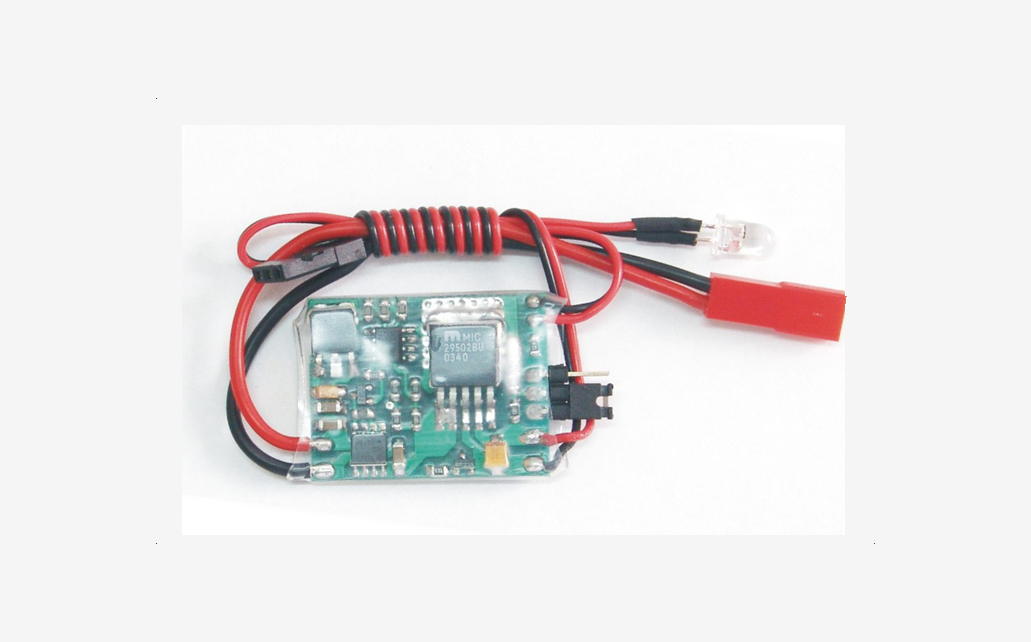

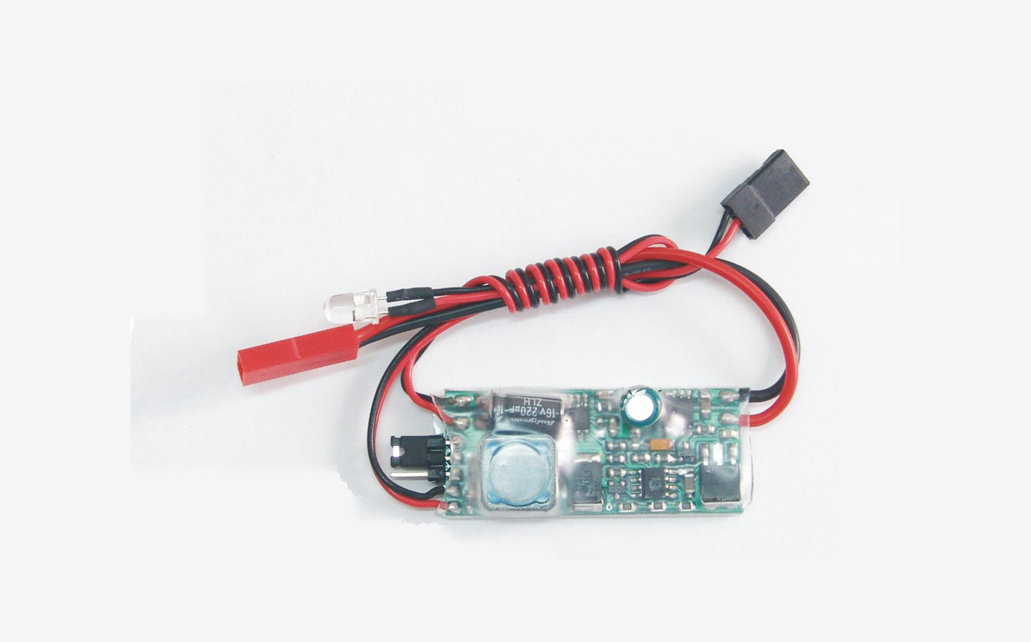

Ultimate BEC-2A	Ultimate BEC-2B
Ultimate BEC-3A	Ultimate BEC-3B

    The Ultimate BEC -2A /Ultimate BEC-2B is ideal for users looking for a simple, easy-to-use, one purpose item. It is intended to be used as a receiver battery pack voltage regulator to power the receiver and servos in a model. It is also ideal for use with 2S Li-Po receiver battery packs.

    Both of them with Li-poly low voltage cutoff or safety. when the input voltage below 6.6V, the high bright LED in tail flash, indicate you need pay attention the battery's low voltage. if the battery pack's voltage down below to 6.1V,the power will cutoff automatically, make your Li-poly pack safe.

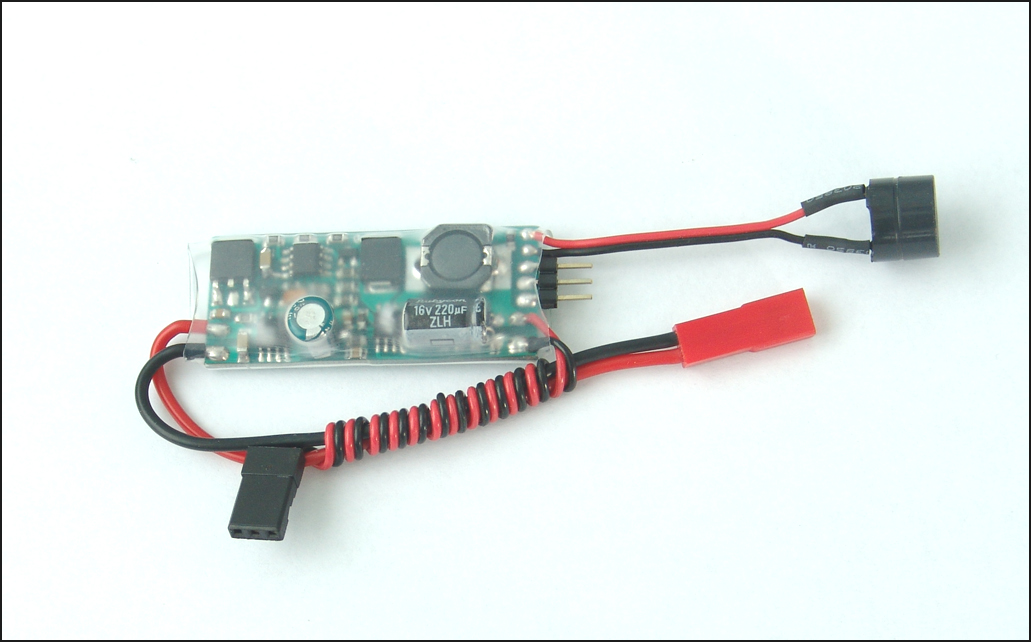

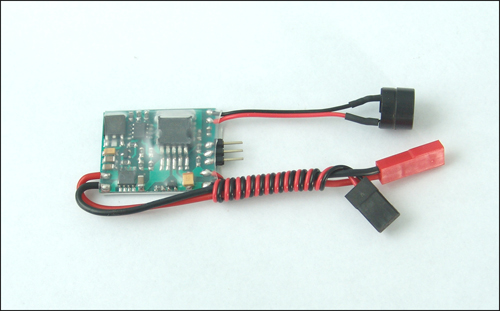

    There are expand product of E-BEC 3A /3B.same features, with li-poly safety ability too, just change the tail LED to a loud Buzzer.

Features:
Input:2cells Li-poly pack
Output: 5v/6v switch
Current: Max 3amp continues
LED: low input voltage alarm at 6.6v
Mode: Linear-mode 2A & 3A
          Switch-mode 2B& 3B
