X8R Receiver





X8 V2 Series Receiver

Series

Model

Description

Effective range of control

Computer programming

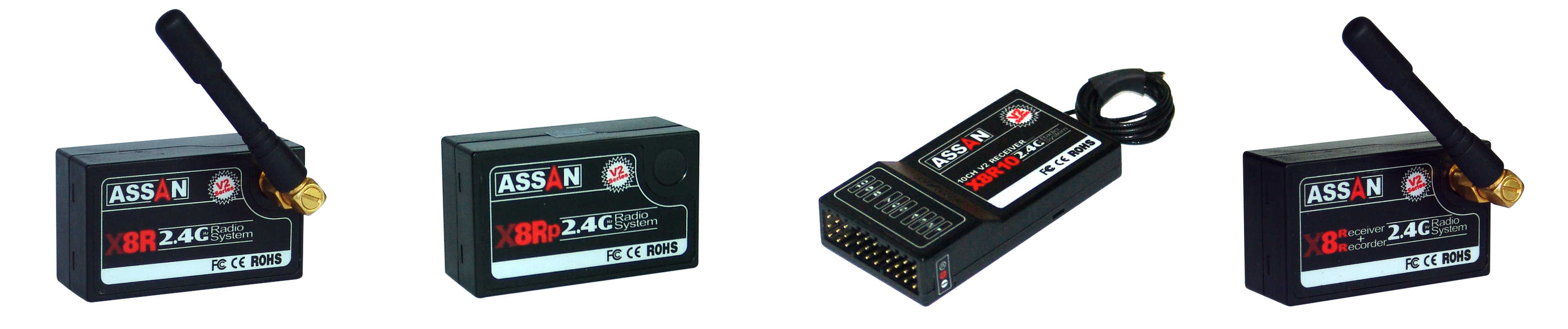

V2 Series

X8R

8-channel receiver ĘC external antenna

1000~6000m

Yes

X8Rp

8-channel receiver ĘC internal antenna

300~800m

Yes

X8R10

10-channel receiver

1000~3000m

Yes

X8 Receiver + Recorder

8-channel receiver with grapher

300~800m

Yes



Notice on the X8R9/X8R10 receiver with V2 RF Module

1. X8R9/X8R10 receiver will output corresponding signal in CH 9,CH 10 only when working with transmitter that comes with 9-10 channel under PPM mode(such as JR 9XII transmitter, that with 9chs in PPM mode). That means for transmitter without 9-10 channels under PPM mode(such as Futaba style transmitter,which have 8chs max at PPM mode), X8R9/X8R10 receiver's CH9, CH10 will not deliver.

2. Any receiver need to be binded with the transmitter for the first time being used. Re-bind will be needed when this happened: after you use a X8R9/X8R10 binded to your transmitter and find that the other receivers ( 8 channel or below receivers ) which binded before lost binding or can't be operate correctly, you need use one 8 chs or below Rx binding again. After re-bind, your 8chs or below receivers back to correct control and your X8-R9/R10 can be use too,just with 8chs deliver only, CH9 and CH10 will without signal out. In some special transmitter,such as JR 9XII,which with 9chs signal out at PPM mode and when you want use CH9's signal in one model, you need re-binding your X8-R9/R10 before use it, and when you return to other Rxs which have 8chs or below in other models, you need use one Rx re-binding.



Download X8 2.4GHz System User Manual

Download V2 Software and User Manual

Download?USB?Driver?For?Vista
